Single Phase Pole Mounted Distribution Transformer 15kva 25kva 16Kva 37.5kva 50kva 7.62kv 15kv

Name: Single Phase Pole Mounted Distribution Transformer 15kva 25kva 16Kva 375kva 50kva 762kv 15kv
Brand: HENTG Power
Price: 1 USD

China Single Phase Pole Mounted Distribution Transformer 15kva 25kva 16Kva 37.5kva 50kva 7.62kv 15kv factory

Place of Origin : China

Brand Name : HENTG Power

Model Number : S11

MOQ : 1

Certification : CE

Frequency : 60Hz

Phase : Single Phase

application : power transformer

Output Voltage : 110V, 220V, 380V, 400V , 440V, 480V

Input Voltage : 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV

Product name : single phase pole mounted transformer

Rated capacity : 10KVA-500KVA

High Voltage : 11kv 10kv 6.3kv 6kv

Low Voltage : 120-240/240-480/347/600V

Application : Power Distribution System Power Transformer

Standard : DOE/IEC60076/IEEE

Vector Group : Dyn11 / Yyn0

Cooling Method : ONAN

Warranty : 2 Years

MOQ : 1 Unit

Contact Now

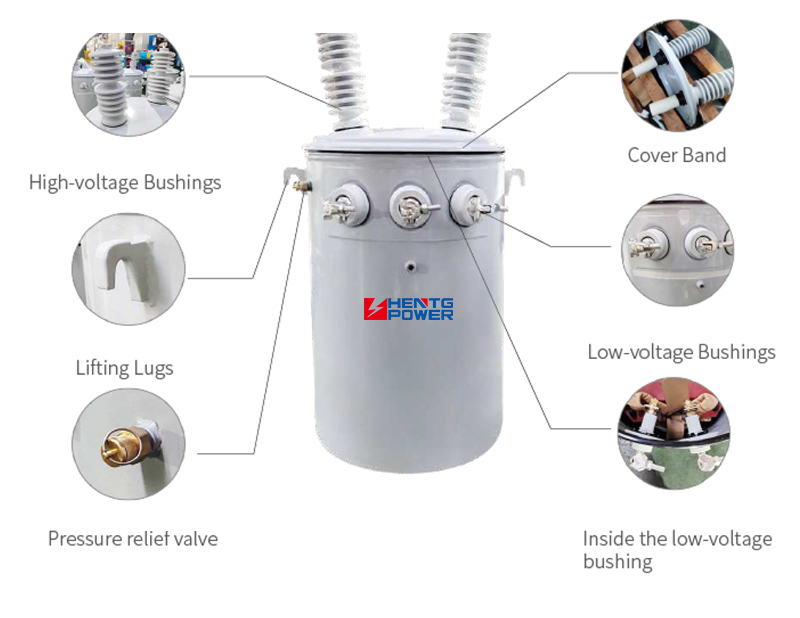

Single Phase Pole Mounted Distribution Transformer 15kVA - 500kVA

Single Phase Pole Mounted Distribution Transformer 15kva 25kva 16Kva 37.5kva 50kva 7.62kv 15kv

Product Specifications

Attribute	Value
Frequency	60Hz
Phase	Single Phase
Application	Power Transformer
Output Voltage	110V, 220V, 380V, 400V, 440V, 480V
Input Voltage	11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV
Rated Capacity	10KVA-500KVA
High Voltage	11kV, 10kV, 6.3kV, 6kV
Low Voltage	120-240/240-480/347/600V
Standard	DOE/IEC60076/IEEE
Vector Group	Dyn11 / Yyn0
Cooling Method	ONAN
Warranty	2 Years
MOQ	1 Unit

Product Overview

HENTG Power single-phase pole mounted distribution transformers (15kVA - 500kVA) feature a compact design suitable for installation in various locations while delivering reliable power distribution performance.

Technical Specifications

Capacity (kVA)	HV	Tapping Range	LV	No-load Loss (W)	Load Loss (W)	Dimension (mm)	Efficiency
15	2400-34500V	±2*2.5%	110-690V	60-150	330-1150	520565905	98.82%
25							98.95%
37.5							99.05%
50							99.11%
75							99.19%
100							99.25%
167							99.33%
250							99.39%
333							99.43%
500							99.49%

Key Advantages

1. Reduced Line Losses and Improved Power Supply Efficiency

Installed close to the load, these transformers shorten the low-voltage supply radius
Low-voltage line losses are reduced by over 99%, greatly enhancing energy utilization efficiency

2. Efficient and Energy-Saving Structural Design

Features a high-efficiency, energy-saving wound core design
Compact and lightweight, making installation and transportation easier

3. Flexible Installation

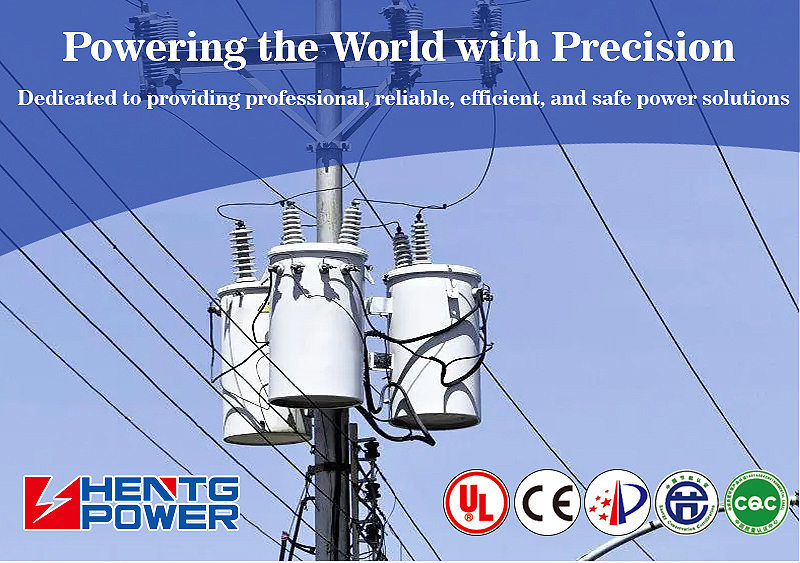

Pole-mounted suspension installation requires no ground space
Ideal for rural and suburban areas

4. Cost-Effective Solution

Requires low capital investment compared to traditional transformer systems
Ideal for large-scale deployment

5. High Reliability and Easy Maintenance

Fully enclosed structure offers excellent protection against dust and moisture
Strong overload capacity ensures stable operation during temporary load surges
Easy to maintain, reducing operational costs

Ordering Process

Step 1: Consultation & Quotation

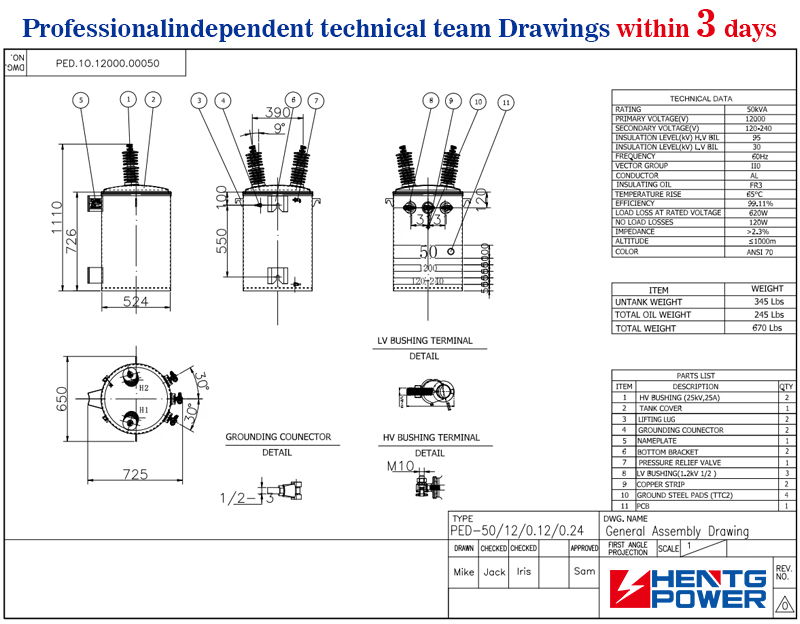

We respond to inquiries within 1 hour with suitable transformer recommendations, reasonable quotations, and payment terms. Our technical team will confirm all drawing details within 7 days after payment.

Step 2: Production & Quality Assurance

After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC reports and test reports for all products.

Step 3: Installation & Support

We provide professional installation guidance and support on-site installation when needed. All products come with a 2-year warranty

About HENTG POWER

Global power system solution expert founded in 2011, covering an area of 100,000㎡. We specialize in designing, manufacturing and installing complete power systems.

Quality Assurance

Double quality inspection process: pre-production sample confirmation + final inspection
Authoritative certification: QC reports, test reports, and FAT (factory acceptance test) support
Manufacturing capabilities include oil-immersed/dry-type transformers up to 500KV/480MVA
Compliance with ANSI/IEEE/DOE2016/CSA/IEC60076 standards
2+ years warranty on all products
