35kV 2000kVA Oil Immersed Three-Phase Power Transformer

Name: 35kV 2000kVA Oil Immersed ThreePhase Power Transformer
Brand: HENTG Power
Price: 22000 USD

China 35kV 2000kVA Oil Immersed Three-Phase Power Transformer factory

Brand Name : HENTG Power

Model Number : S11

Certification : CE

Place of Origin : China

MOQ : 1

Price : 22000

Payment Terms : T/T

Supply Ability : 20000+ units/ year

Delivery Time : 30 days

Packaging Details : Wooden package

Phase : Three

Number Of Phases : Three Phases

Winding Materials : Copper/Aluminum

Coil Structure : TOROIDAL

Coil Material : Copper

Appearance : Fine Appearance

Product Description : Oil-immersed Type Transformers

Color : Optional

Type : Power Transformer

Insulation : Mineral Oil

Rated Power : 2000 kVA

Installation Method : Outdoor

Usage : Power,Instrument,power grid system,High Frequency,Distribution Transformer

Product name : Power transformer

Material : Copper,Alumnium or copper,Copper+alumnium

Output voltage : 15kv 10 kv 0.4/0.69kv,0.415kv,13.8kv,0.4/0.23kV,200v/220/240/380v/400v/415v/440v

Cooling method : Oil Natural,ONAN,Oil Cooling

Input voltage : customized product,11kv/10.5kv/10kv/6.3kv/6kv,5-35kV

Contact Now

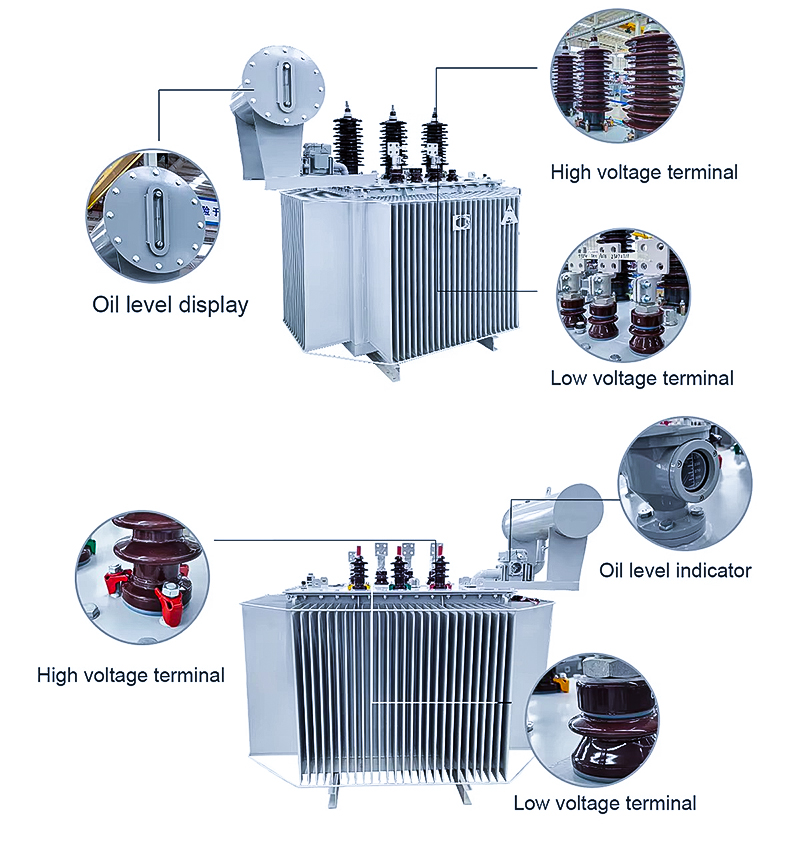

35kV 2000kVA Oil Immersed Three-Phase Power Transformer

PRODUCTS DESCRIPTION

Technical Data For 35KV Three-Phase Oil Immersed Transformer (630KVA~31500KVA)
Capacity	HV	HV	LV	Vector	No-load Loss (W)	On-load Loss (W)	No-load Current (%)	Short Circuit
(KVA)	(KV)	(Tapping)	(KV)	Group				Impedance (%)
630 800 1000 1250 1600 2000 2500	35	±5%	3.15 6.3 10.5	Yd11	830 980 1150 1410 1700 2180 2560	7870 9410 11540 13940 16670 18380 19670	1.1 1 1 0.9 0.8 0.7 0.6	6.5






3150 4000 5000	35~38.5	±5%	3.15 6.3 10.5		3040 3620 4320	23090 27360 31380	0.56 0.56 0.48	7


6300					5250	35060	0.48	7.5
8000 10000	35~38.5	±2*2.5%	3.15 3.3 6.3 6.6 10.5 11	Ynd11	7200 8700	38480 45320	0.42 0.42

12500 16000 20000 25000 31500					10080 12160 14400 17020 20220	53870 65840 79520 94050 112860	0.4 0.4 0.4 0.32 0.32	8

RECOMMEND PRODUCTS

CONUSULTING PROCESS

Step 1: We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide
you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our
business now.
If you have any questions, welcome to click here for discussion !!!

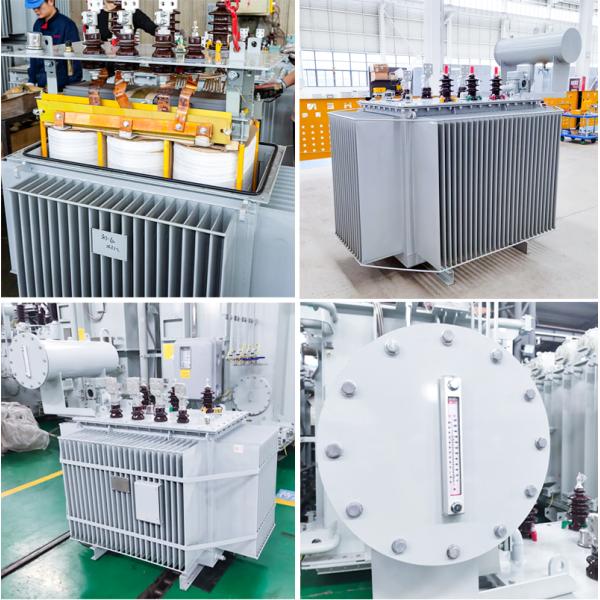

PRODUCTION AND TRANSPORTATION PROCESS

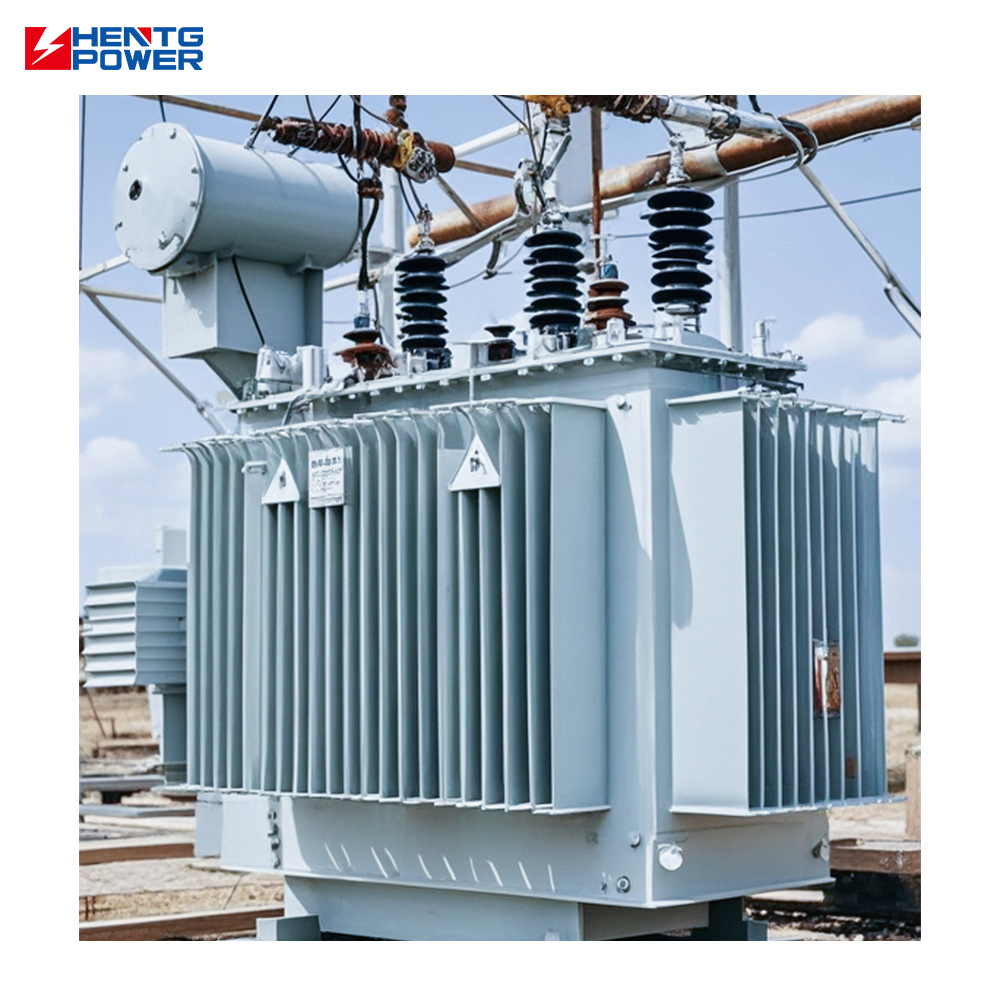

APPLICATION SCENARIO

OUR ADVANTAGES

Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
● 100000m² factory, 250 workers, 30+engineers .

● 4 production line, 10000+ sets annual production capacity.

● 100% OQC testing with 25 detection contents.

● 15 years powertransformer designing and production experience.

● Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.

●Cross-industry power transformer solution.

● Global on-site technical support.

CERTIFICATIONS

Q: Who are we ? HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems
Q:How can we guarantee quality ?
Always a pre-production sample before mass production; Always final Inspection before shipment, We
will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
Q: Why choose us?
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Q: What servicescan we provide ?
Accept OEM, business payment are negotiated.
